Procart I

Procart I

This filter enjoys the same superior quality of manufacture as our Procart B booth filter, which makes it ideal for using with most paint types and within most types of spray booth. The difference, with the IB filter, is that it has a special coating making the booth filter non-flammable.
£27.36
Shipping calculated at checkout.
Description

Our PROCART IB spray booth filter enjoys the same superior quality of manufacture as our Procart B booth filter, which makes it ideal for using with most paint types and within most types of spray booth. However, its uniqueness is that the filter has a special coating making it non-flammable.

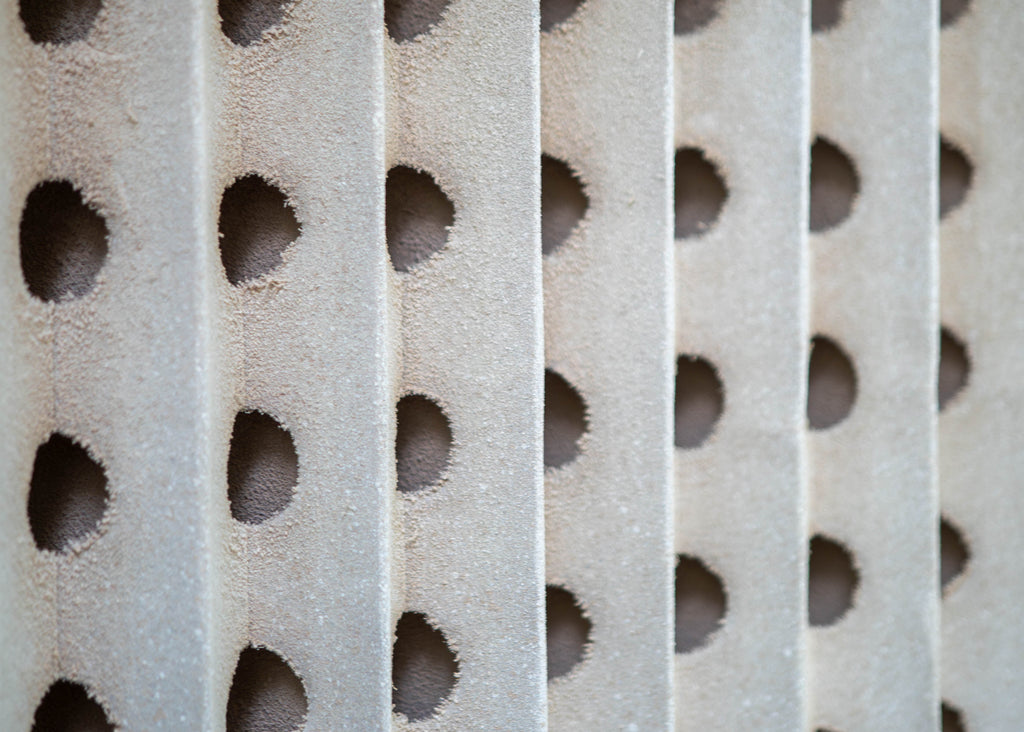

The folded 'accordion' design ensures that the spray booth filter has a high paint holding capacity whilst it maintains maximum airflow for longer than alternatives such as fibreglass rolls. Our spray booth filters will ensure that air, from your product finishing area, is filtered effectively.

The Procart IB spray booth filter is designed to filter all types of water and solvent based paints and other coatings but not powder paints or dust (for this we recommend the use of our Procart M2, Procart H or Procart HS filters which you will see below). Your paint overspray is captured on both on the face of the filter and within the folds which allows the filtered air to pass through with minimal obstruction until the filter is full, thus a constant airflow is maintained for much longer than using other types of extraction filtration.

If you are looking to spray powder or very dry or dusty paints or feel that your spray booth may suffer from a high percentage of overspray or you are experiencing problems with dust or paint travelling through your ducting and ending up outside of your factory then you may want to look at the other options within our Filtration range or feel free to call us on 01673 895130 or email us for further assistance.

If you require a non-standard size then simply select the closest standard size larger than your required size. During the check-out process you can complete your required size in the box for special requests. If you would prefer to confirm your required filter size, before ordering, then you can either call us on +44(0)1673 895130 or visit our CONTACT US page where you can message us or complete an enquiry form.
Specification

DEPTH: 55mm


RECOMMENDED AIRSPEED: 0.5—1 m/s


PRESSURE DROP: 13 PA at 0.5 m/s


LOSS OF AIRSPEED AT NEW: 0.5mm for 0.75 m/s (4.91 PA)


PAINT HOLDING CAPACITY: up to 18kg/m2 (depending upon type of paint being used)


MAXIMUM LOSS OF AIRSPEED: 9.0mm for 0.75 m/s (88.3 PA)


DIMENSIONS: 0.9 x 9.2-metres
Technical Sheets

Procart IB - Technical Sheet
FAQs

How can a cardboard filter be non-flammable?


The cardboard has been treated with a special coating which makes the cardboard non-flammable under normal circumstances. This is very good when solvent paints are being used or stored nearby. Also when the spray area has certain activity restrictions or when a manufacturing process can cause possible ignition.



Can I use this filter with powder paints?


We wouldn't recommend using the Procart B with powder paints as it isn't designed to capture the very fine, dry powder without modifications. If you are using solely powder paint or most of your spraying is with powder paint, then we would recommend using our Procart M2 filter. If most of your spraying is with traditional 'wet' spray and you may do a little spraying with powder, then the Procart M2 can still be used or our Procart H or Procart HS.



How do I know how much filter to put into my booth?

The Procart B should be fitted at a minimum of 26 folds per meter. This means that if your booth measures 2-metres wide then you would need to count 2 x 26 (52 folds) folds plus a couple of extra couple of folds to hold the filter at each end. However, don't feel that you must stick to 26 folds regardless. 26 folds is a minimum and can be increased to allow for individual circumstances such as a very high airflow


How long will a Procart last?


A Procart will last until it fills up and needs to be changed so the more you use the filter then the quicker it will need to be changed. This may sound obvious, but many people seem to struggle with the concept that the Procart is in place to capture overspray and the more it captures then then the sooner it will need to be changed.
