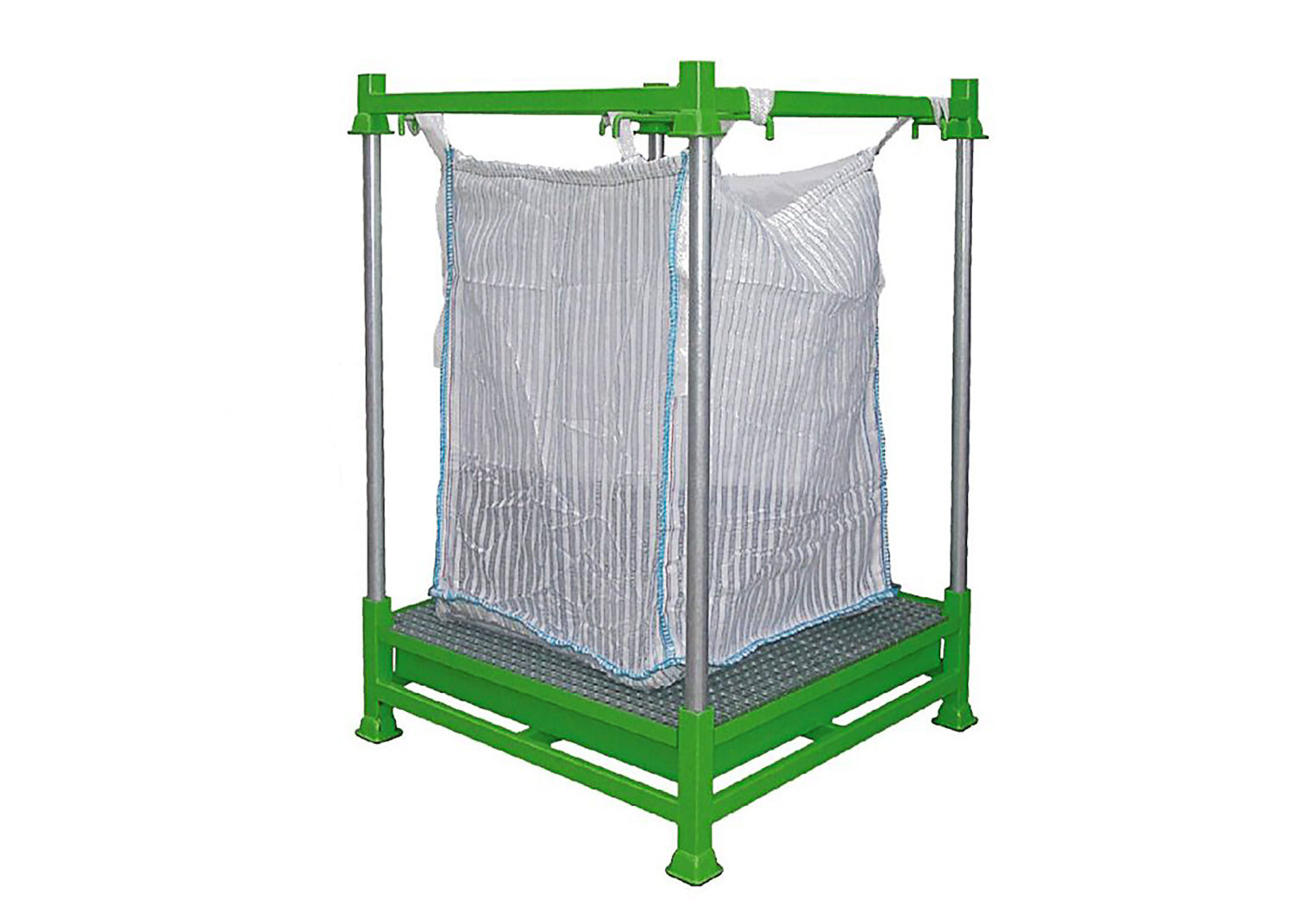

Bigfloc

2592

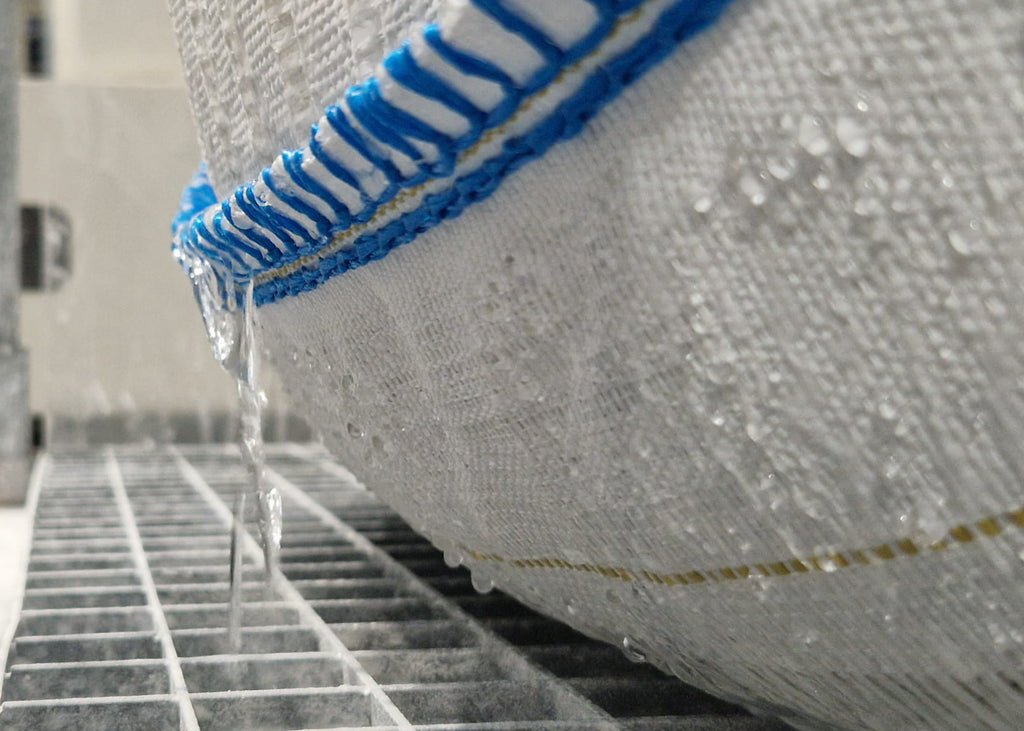

Our Bigfloc is a quick and space saving solution for the removal of suspended particles from all types of industrial water. The Aspifloc filtration sack will remove, after treatment, all suspended particles, leaving your industrial water clear and clean.

For many types of installation the industrial water will need to be treated in order to separate the solids so that they become suspended and able to be filtered and removed. Our Proco products should be added to the water in order for the separation to take place and the full range of Proco products allows for the treatment of all types of paint, glue etc.

Our systems are specially adapted to meet your quality requirements, available space and budget.

Therefore each must be ordered accordingly.

Fill out our contact form below or contact us to order

Product Specification

FAQs

Options

Dimensions:

Length - 1190mm

Width - 1190mm

Height - 1180mm

Weight - 150kg

Filter Bag Capacity:

1000kg

Filter bag flow rate:

50 litres - 300 litres per hour depending upon sludge condition

Retention Tank Capacity:

190 litres

How can you use multiple units?

We can adjust pipework so that one or many Bigfloc units can be included in the system to increase the filtration capacity and allow you to maximise the capacity of each filtration sack. A Bigfloc can be included when the system is installed or can be brought in and added to the system at a later date.

The Bigfloc can be used in conjunction with our EPUR-OIL or EPUR-WATER micro filtration units to optimise the treatment by giving increased filtration quality.

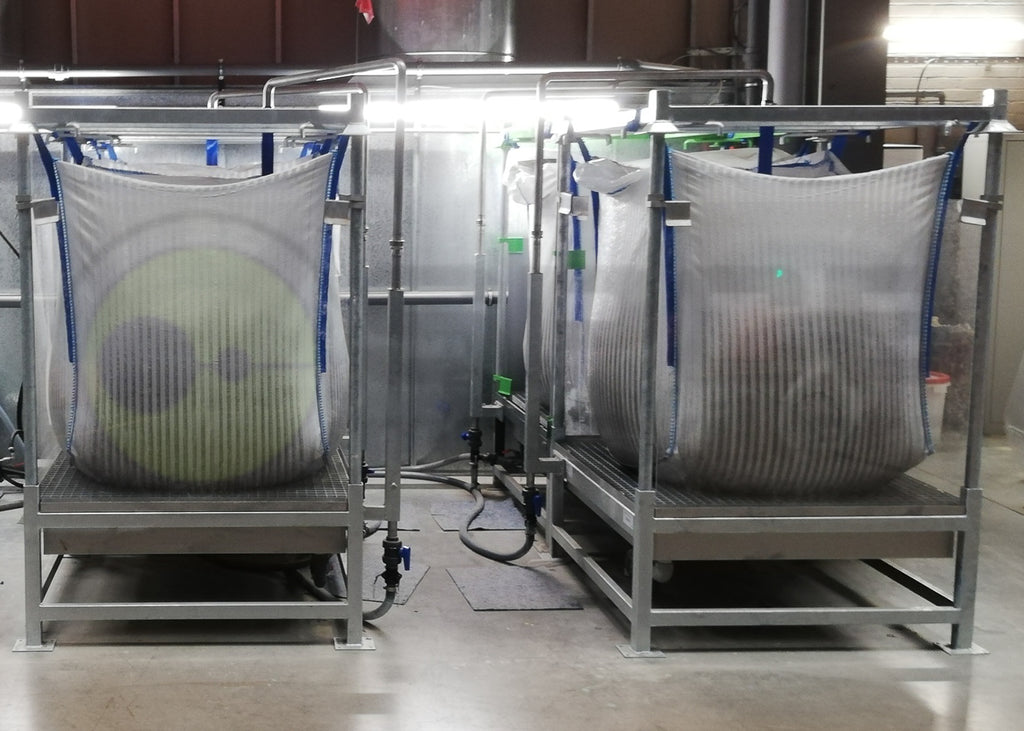

A number of Bigfloc units can be connected together to give increased filtration volumes.

Can be supplied with or without wheels and splash screens depending upon your particular requirements.

We have a range of diaphragm pumps to transfer water to the Bigfloc and to remove filtered water from the retention tank.
